Description
Description:

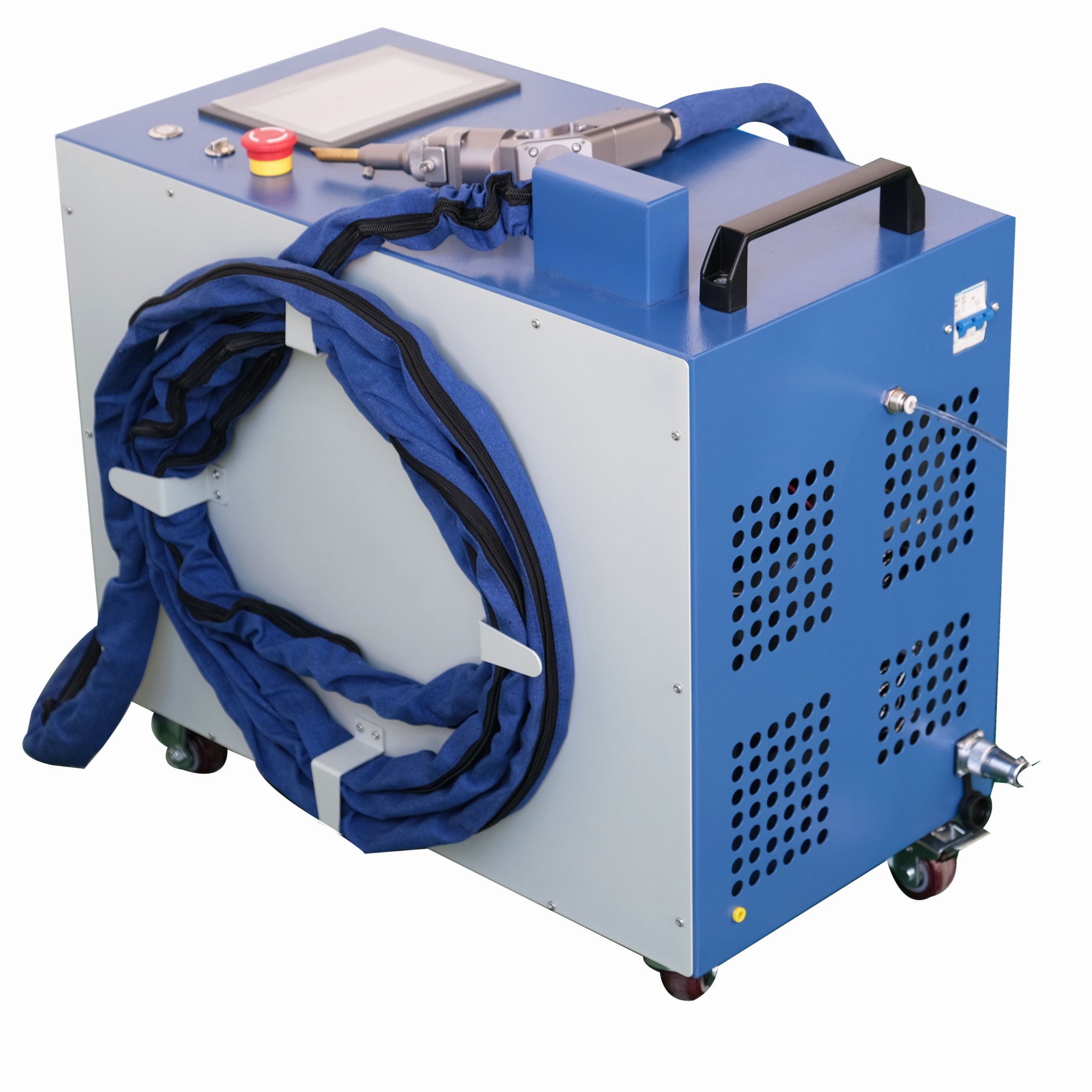

Hand-held optic fiber welding has a lower production compliance rate. However, hand-held welding machine is the best choice for the production workshops engaged in small-scale processing or non-large-scale welding. There is no need to set up equipment to deploy the welding station, which takes up little space. The important point is that the welding products of small workshops are diversified and the shape of the products is flexible. Hand-held laser welding machine can fully meet those requirements.
The hand-held laser welding machine replaces the previously fixed light path with a hand-held torch, overturning the previous working mode of the laser welder. This mode of operation not only facilitates the welding of molds, advertising characters, kitchen utensils, etc, but also allows for laser welding in outdoors .
Specification:
Machine model
MW-FR1000
Max laser power
1000W
Laser type
Fiber laser source
Source brand
STR
Laser medium
fiber
Laser wavelength
1064um
Max power of single impulse
150-200J
Pulse width
0.1-20ms
Laser welding frequency
0-100Hz
Instability of energy
＜2%
Beam Divergence
≤8mrad
minimal beam diameter
0.3mm
Adjustable scope of laser spot
0.6-3.0mm
Welding depth
0.1~3mm
Continue working time
16hours
Noise
≤60db
Transmission system
Fiber optical transmission system (FOTS)
Fiber optical length
10m standard
Power Consumption
≤6KW
Cooling system dimensions
Water chiller BY1000
Power required
380V±10%/50Hz
Consumable
Protection glass/lense
Working temperature
55°F(13°C)-82°F(28°C)
Working Humidity
5%-75%
Oil mist
≤15mg/m³
Advantages:
1. Independently developed wobble welding head is with swing welding mode, adjustable spot width, and strong welding fault tolerance. It expands the tolerance range of machining parts and weld seam width, and obtain better weld formation
2. Fast welding speed, 2-10 times faster than traditional welding.One unit of laser welding machine can replace at least two workers yearly.
3.Laser welding seldom needs consumables. It is with long life span, safer and more environmentally friendly.
4.With simple operation, beautiful and smooth weld seam effect, fast welding 5.Speed and no consumables needed during welding process.
6.Welding in thin metal plates such as stainless steel plates, iron plates and galvanized
7.Plates can perfectly replace traditional argon arc welding and electric welding.
Features:
1.The fist integrated cabinet in China,which integrates laser,water chiller and controller system,has the unique advantages of small area,convenient movement and strong functionality.
2.Handheld welding joint is equipped with 5m-10m original optical fiber, which is flexible and convenient.
3.Hand-held operation mode, special welding nozzles can be assembled to weld workpieces at any position and at any angle
4.Beautiful weld, no weld scar, no discoloration,no need for follow-up grinding.
5.The welding is firm and the strength of the weld reaches or even exceeds the base metal itself.
6.It is suitable for tailor welding, overlay welding, fillet welding, arc welding, irregular shape welding, etc.

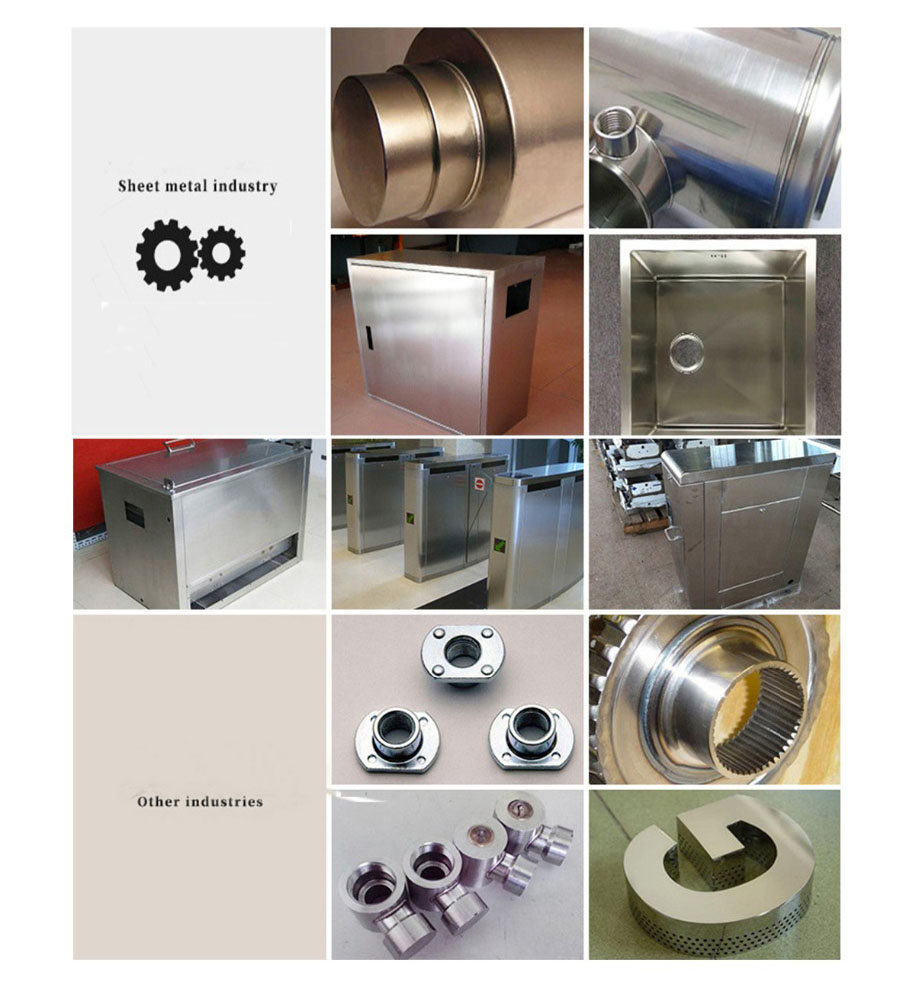

Sample:
Service:
1. Core technology. When we were a small factory, we have focused on the development of core components such as laser power supplies and optical path. Unlike other suppliers, they only sell through assembly equipment.
2. Independent research and development department. This means we can offer our customers customized machines and improve the equipment according to market changes
3. Dealer support plan. In the early stage of customers' market development, we provide technical parameters for the installation and use of equipment free of charge, share good marketing methods, help customers win the market and achieve success.
4. Strict testing. All of the suppliers we work with come from world-class manufacturers. Before the delivery, each machine needs to be tested and inspected for 48 hours (marking machine, welding machine) and 4-7 days (cutting machine) to ensure quality and safety.
5. Timely delivery. Each machine has an accurate assembly process and strict time control to ensure that customers receive goods in a timely manner.
6. After-sales service and guarantee. We offer a 2-year warranty and any problems occur during the period and we have a responsibility to resolve them. If any part of the machine is broken, we will repair it for free and send free accessories.
