Description
Description:

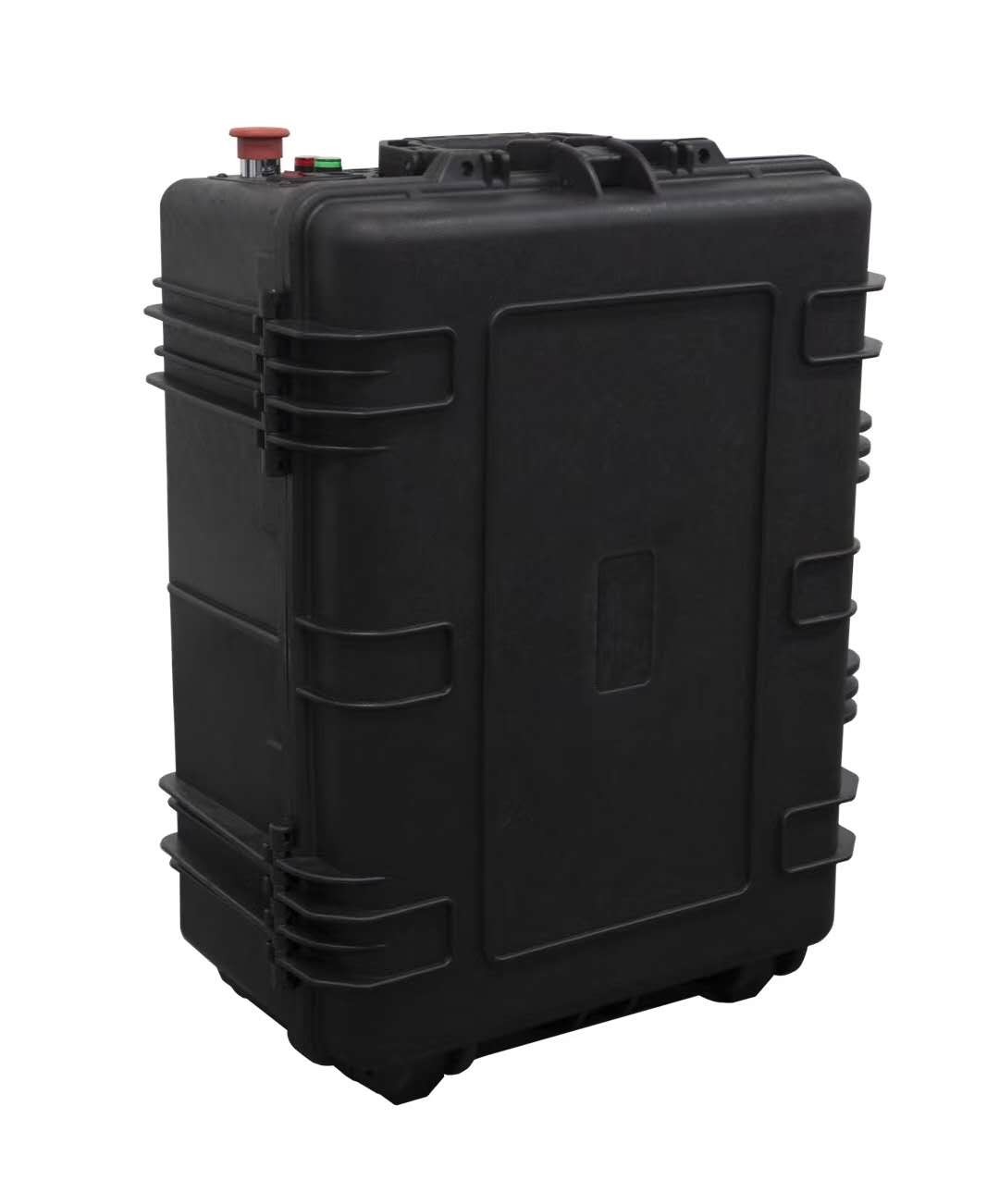

Maxwave Laser non-contact descaling machine is new generation of high-tech products, base not injured parts, consumable materials, energy conservation, environmental protection, efficient cleanup on the surface of resin, oil, dirt and stains, dirt, rust, coating, paint, meet the industrial processing complicated shape, fine positioning cleaning requirements, achieve cleanliness higher cleaning effect, the comprehensive cost lower production efficiency.
Mainly used in automobile manufacturing, mechanical processing, electronic processing, cultural relic repair, mold industry, shipping, food processing, petrochemical industry and other industries.100 w and 200 w laser pulse laser cleaning, using optical fiber output, fully enclosed stable light path, the service life of more than 100000 consecutive hours, 2 years warranty, forced air cooling, the machine integrated power 480 w, environmental protection and energy saving, small and portable.
Specification:
|
Model |
MW-C50 |
MW-C70 |
MW-C100 |
MW-C200 |
MW-C500 |
|
Laser power |
50W |
70W |
100W |
200W |
350W |
|
Laser wavelength |
1064nm |
||||
|
Pulse frequency |
20-100KHz |
20-100KHz |
20-200KHz |
20-50KHz |
20-50KHZ |
|
Type of cooling |
Air-Cooled |
Air-Cooled |
Air-Cooled |
Water-Cooled |
Water-Cooled |
|
Dimensions |
760mmX780X790mm |
1100x950x700mm |
|||
|
Total weight |
56kg |
60kg |
65kg |
130kg (include water tank) |
280kg (include water tank) |
|
Total power |
350W |
500W |
600W |
1000W |
3500W |
|
Scan width |
10-80mm |
||||
|
Choices |
Handheld/Automatic |
||||
|
Working temperature |
5-40℃ |
||||
Advantage:
1. Laser cleaning is a “green” cleaning method. It does not need to use any chemicals and cleaning liquid. The washed waste is basically solid powder, small in size, easy to store, recyclable, and can easily solve chemical cleaning. Environmental pollution problems;
2 .The traditional cleaning method is often contact cleaning, which has mechanical force on the surface of the cleaning object. The surface of the damaged object or the cleaning medium adheres to the surface of the object to be cleaned, cannot be removed, and causes secondary pollution. Grinding and non-contact properties solve these problems;
3 .The laser can be transmitted through optical fiber, cooperate with the robot and the robot to easily realize long-distance operation, and can clean the parts that are difficult to reach by traditional methods. This can be used in some dangerous places to ensure the safety of personnel;
4 .Laser cleaning removes all types of contaminants from the surface of various materials to the level of cleanliness that cannot be achieved with conventional cleaning. Moreover, it is also possible to selectively clean the surface of the material without damaging the surface of the material;
5 .Laser cleaning efficiency is high, saving time;
6 .Purchase of laser cleaning system Although the initial one-time investment is higher, the cleaning system can be used stably for a long time, and the running cost is low. Take the case of LATELLASTE of Quantel, the operating cost per hour is only about 1 Euro, and more importantly, Automated operation is easy.
Feature:
1. The beam emitted by the laser is absorbed by the contaminated layer on the surface to be treated.
2.Absorption of large energy forms a rapidly expanding plasma (a highly ionized unstable gas) that produces a shock wave.
3. Shock waves cause the contaminants to become fragments and are rejected.
4. The light pulse width must be short enough to avoid heat build-up that would damage the surface being treated.
5.Experiments have shown that when there is an oxide on the surface of the metal, the plasma is generated on the metal surface.
Sample:
Service:
1. Core technology. When we were a small factory, we have focused on the development of core components such as laser power supplies and optical path. Unlike other suppliers, they only sell through assembly equipment.
2. Independent research and development department.This means we can offer our customers customized machines and improve the equipment according to market changes
3. Dealer support plan. In the early stage of customers' market development, we provide technical parameters for the installation and use of equipment free of charge, share good marketing methods, help customers win the market and achieve success.
4. Strict testing. All of the suppliers we work with come from world-class manufacturers. Before the delivery, each machine needs to be tested and inspected for 48 hours (marking machine, welding machine) and 4-7 days (cutting machine) to ensure quality and safety.
5. Timely delivery. Each machine has an accurate assembly process and strict time control to ensure that customers receive goods in a timely manner.
6. After-sales service and guarantee. We offer a 2-year warranty and any problems occur during the period and we have a responsibility to resolve them. If any part of the machine is broken, we will repair it for free and send free accessories.
