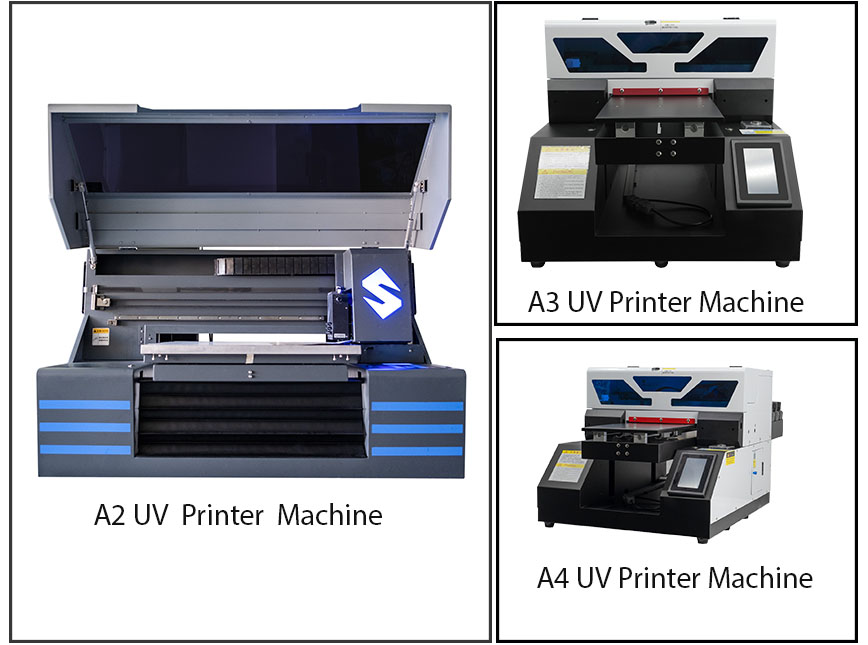

How to choose A2 A3 A4 UV printer machine?
How to choose A2 A3 A4 UV printer machine? You can compare with this form.
This is A2 uv printer specification:
|
Print Size |
500(W)*400(L)mm |
|
Nozzle configuration |
Japan's latest EPSON original 180 holes×8 rows/print head, ink droplet variable technology, maximum ink drop 12pl, minimum 2.5pl |
|
Number of nozzles |
1 or 2 nozzles (optional) |
|
Print color |
High-precision intelligent dual 4-color (CMYK) (double nozzle eco-solvent), 8 colors (double nozzle eco-solvent), white ink W+CMYK 4 color ink (double nozzle UV ink) (optional color configuration according to the nozzle) |
|
Print height |
150mm |
|
Lifting function |
Intelligent platform lifting |
|
Printing accuracy |
2880dpi*1440dpi*720dpi*360dpi |
|
Ink system |
1L×4 colors / 220ML×8 colors, uninterrupted intelligent circulating continuous supply system |
|
Print Speed
|
CMYK (single head four colors) CMYK+W (1 print head prints 4 colors +1 print head prints white ink) 2×CMYK (double four colors) (2 print heads print 4 colors at the same time) |
|
|
720×720dpi/4Pass 8 ㎡/H |
|
|
1440*720dpi/8Pass 4 ㎡/H |
|
|
1440*1440dpi/16Pass 2 ㎡/H |
|
|
2880*1440dpi/32Pass 1.8 ㎡/H |
|
Receive files |
TIFF (RGB&CMYK), BMP, PDF, EPS, JPEG, AI, PSD, etc. |
|
Electricity requirements |
AC220/110±10,50HZ~60HZ, P 100W |
|
Interface method |
High-speed USB transmission interface |
|
Operating platform |
MicrosoftWindows98/Me /2000 /XP/Win7/win10 |
|
Software output |
Color management software UltraPrint imported from Germany |
|
working environment |
The best temperature: 15℃-35℃, relative humidity 20%-80% |
|
equipment weight |
70KG |
|
Equipment size |
1000 x750 x650 mm (length x width x height) |
This is A3 uv printer specification:
|
Model |
A3-19 |
|
|
|
Print Head |
EPSON L800 |
UV Print Area |
A3(267*420mm) |
|
Printing Precision |
2880*1440DPI |
Software |
AcroRIP |
|
Printing Platform |
A3(300*420mm) |
Applicable System |
Windows(Does not support the apple software) |
|
Printing Speed |
A3 breadth(approximately 1440dpi/3min) |
Color Configuration |
Support |
|
Printing Height |
0-120mm Infrared ray measurement |
Relief Print |
Support |
|
Ink Consumption |
1sq.m/20ml |
Packing Size |
L700*W700*H620mm |
|
Ink Supply System |
6-color CISS ink supply |
Equipment Dimension |
L670*W670*H510mm |
|
White Ink Output |
support |
Net Weight |
46KGS |
|
UV Lamp Service Life |
3 years |
Gross Weight |
66KGS |
|
UV Lamp Cooling |
Water+air cooling |
Outer Packaging |
The export wooden box+foam |
|
UV Lamp Power |
30W |
||
|
Platform Adjustment |
Touch Screen +Infrared height measurement |
||
|
Platform Driver |
Pulse motor driver |
||
|
Voltage/Plug |
AC100-230V/It is optional according to different countries |
||
|
Sprinkler Protection |
Intelligent infrared collision system, absorbing ink pad perservative solution anti clogging |
||
|
Print Media |
Phone case/leather/crystal/bottle/glass/card/CD/U-disk/name-plate ect. |
||
|
Notes |
Flat-panel printers adopt stable walking platform technology,leading way of stepping motor drive. |
||
This is A4 uv printer machine:
|
Model |
A4-19N |
|
|
|
Print Head |
EPSON L800 |
UV Print Area |
A4(180*297mm) |
|
Printing Precision |
2880*1440DPI |
Software |
AcroRIP |
|
Printing Platform |
A4(210*297mm) |
Applicable System |
Windows(Does not support the apple software) |
|
Printing Speed |
A4 breadth(approximately 1440dpi/3min) |
Color Configuration |
YMYK+WW |
|
Printing Height |
0-120mm Infrared ray measurement |
Relief Print |
Support |
|
Ink Consumption |
1sq.m/20ml |
Packing Size |
L700*W650*H620mm |
|
Ink Supply System |
6-color CISS ink supply |
Equipment Dimension |
L600*W550*H450 |
|
White Ink Output |
support |
Net Weight |
30KGS |
|
UV Lamp Service Life |
3 years |
Gross Weight |
45KGS |
|
UV Lamp Cooling |
Water+air cooling |
Outer Packaging |
The export wooden box+foam |
|
UV Lamp Power |
50W |
||
|
Platform Adjustment |
Touch Screen +Infrared height measurement |
||
|
Platform Driver |
Pulse motor driver |
||
|
Voltage/Plug |
AC100-230V/It is optional according to different countries |
||
|
Sprinkler Protection |
Intelligent infrared anti-collision system, anti-clogging of ink pad maintenance liquid |
||
|
Print Media |
Phone case/leather/crystal/bottle/glass/card/CD ect. |
||
|
Notes |
Flat-panel printers adopt stable walking platform technology,leading way of stepping motor drive. |
||
This three uv printer machine also can be print all kinds of materials,just the working area is different.
